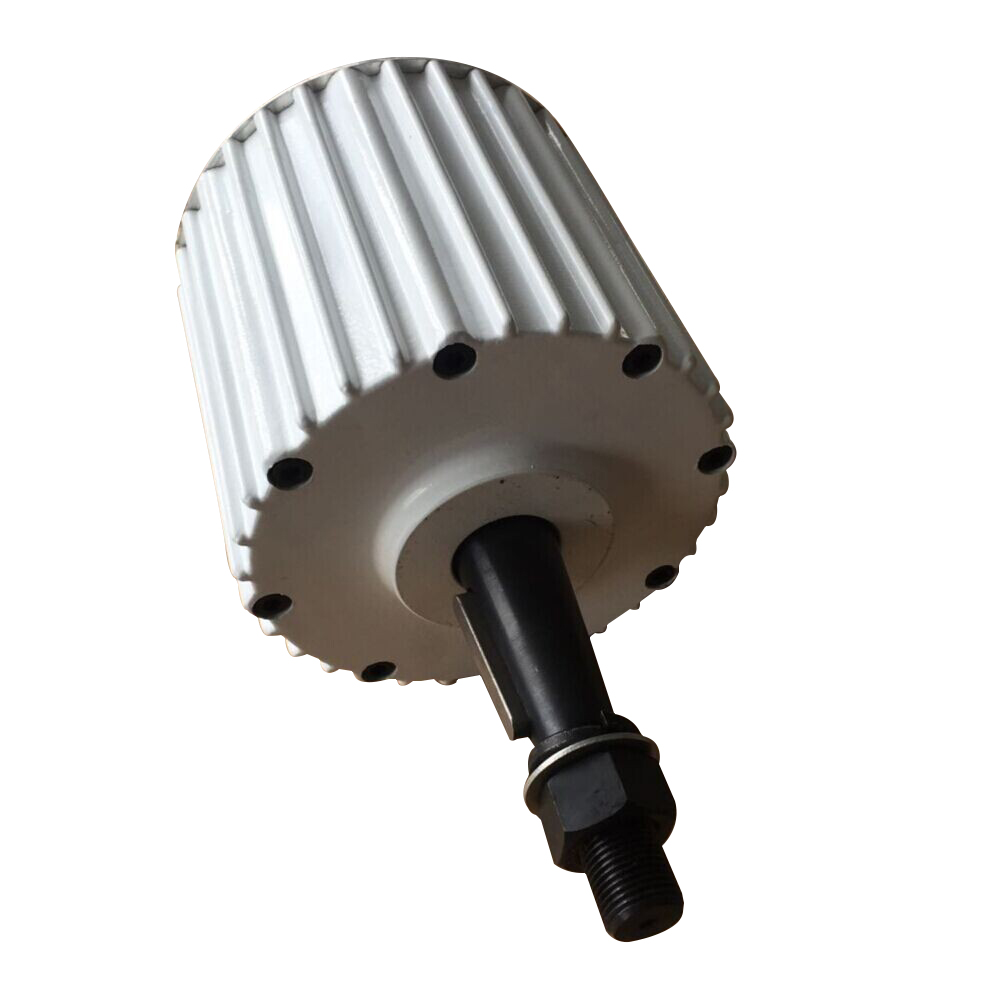

1. NdFeB rare earth permanent magnet generator.
2. Low startup torque, wind energy utilization high; small size, beautiful appearance, low vibration.
3. Human friendly design, easy installation, maintenance and repair.

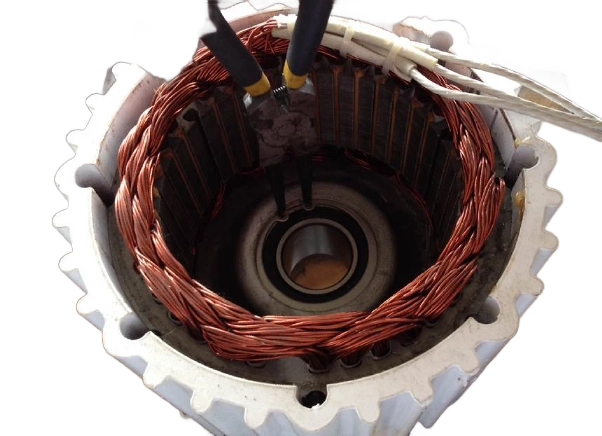

4. Permanent magnet generator rotor using patented alternator, together with the special stator design, effectively reduce the generation of resistance torque and enhance generation perfomance.
5. Aluminum alloy body, anti-corrosion/rain, maintenance-free.

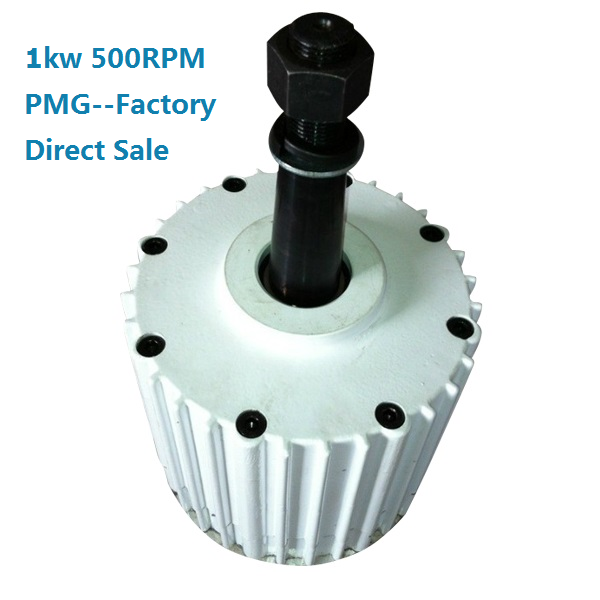

Item # | 1kw LP |
Rated Power(W): | 1kw |
Rated Speed(RPM): | 650r/m |
Rated Voltage(V): | AC48v or as your request |
Insulation Class: | F |
Efficiency (%) | 93 |
Generator type | 3 -Phase Permanent Magnet AC Synchronous Generator |
Service Life: | over 20 years |
Working Environment | -35º C-60º C |
Speed Range | 0-800 rpm |
Mechanical specifications | |

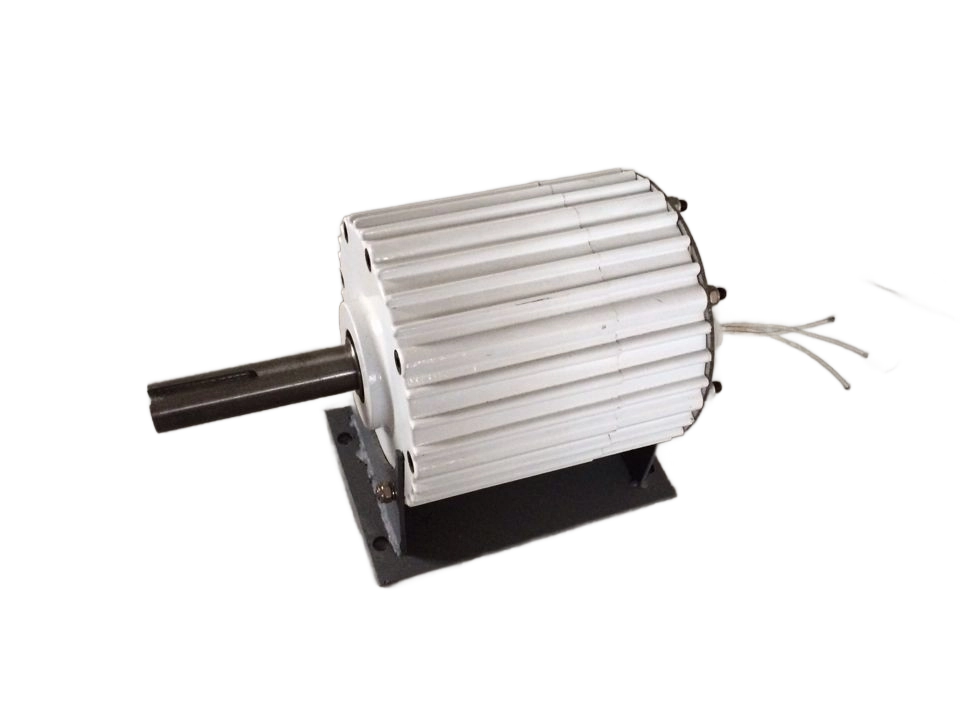

Mounting Means | Horizontal/ Vertical |
Gross Weight(Kg) | 20 |
Start Torque(N*M) | 0.62 |
Rated Toque(N*M) | 19.1 |
Poles | 12 |
Material specifications | |
Shaft Material | Iron with quenching and tempering Treatment |
Bearing | HRB or as your request |
Lubrication | Lubrication Grease |
Shell Material | Casting Aluminum Alloy |
Winding Temperature Class | 150 Centigrade |
Permanent Magnet Material | Rare Earth NdFeB |
Permanent Magnet Material Temperature Class | 150 Centigrade |
Core | High Grade Cold Rolling Silicon Sheet 50WW470 |
Protection Grade | IP54 |

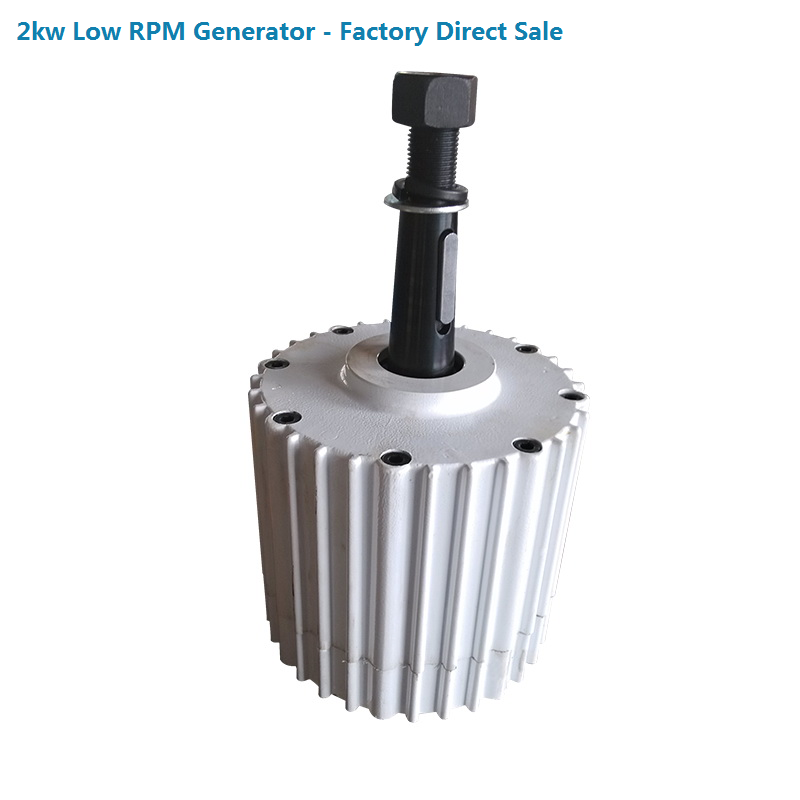

Item # | 2kw LP |
Rated Power(W): | 2kw |
Rated Speed(RPM): | 650r/m |
Rated Voltage(V): | AC48v or as your request |
Insulation Class: | F |
Efficiency (%) | 93 |
Generator type | 3 -Phase Permanent Magnet AC Synchronous Generator |
Service Life: | over 20 years |
Working Environment | -35º C-60º C |
Speed Range | 0-800 rpm |
Mechanical specifications | |
Mounting Means | Horizontal/ Vertical |
Gross Weight(Kg) | 25 |
Start Torque(N*M) | 0.72 |
Rated Toque(N*M) | 23.9 |
Poles | 12 |
Material specifications | |
Shaft Material | Iron with quenching and tempering Treatment |
Bearing | HRB or as your request |
Lubrication | Lubrication Grease |
Shell Material | Casting Aluminum Alloy |
Winding Temperature Class | 150 Centigrade |
Permanent Magnet Material | Rare Earth NdFeB |
Permanent Magnet Material Temperature Class | 150 Centigrade |
Core | High Grade Cold Rolling Silicon Sheet 50WW470 |
Protection Grade | IP54 |
Item # | 2kw GP |
Rated Power(W): | 2kw |
Rated Speed(RPM): | 500r/m |
Rated Voltage(V): | AC48v/96v or as your request |
Insulation Class: | F |
Efficiency (%) | 93 |
Generator type | 3 -Phase Permanent Magnet AC Synchronous Generator |
Service Life: | over 20 years |
Working Environment | -35º C-60º C |
Speed Range | 0-800 rpm |
Mechanical specifications | |
Mounting Means | Horizontal/ Vertical |
Gross Weight(Kg) | 25 |
Start Torque(N*M) | 0.72 |
Rated Toque(N*M) | 23.9 |
Poles | 12 |
Material specifications | |
Shaft Material | Iron with quenching and tempering Treatment |
Bearing | HRB or as your request |
Lubrication | Lubrication Grease |
Shell Material | Casting Aluminum Alloy |
Winding Temperature Class | 150 Centigrade |
Permanent Magnet Material | Rare Earth NdFeB |
Permanent Magnet Material Temperature Class | 150 Centigrade |
Core | High Grade Cold Rolling Silicon Sheet 50WW470 |
Protection Grade | IP54 |
Item # | 3kw GP |
Rated Power(W): | 3kw |
Rated Speed(RPM): | 333r/m |
Rated Voltage(V): | AC96v/120v or as your request |
Insulation Class: | F |
Efficiency (%) | 93 |
Generator type | 3 -Phase Permanent Magnet AC Synchronous Generator |
Service Life: | over 20 years |
Working Environment | -35º C-60º C |
Speed Range | 0-550 rpm |
Mechanical specifications | |
Mounting Means | Horizontal/ Vertical |
Gross Weight(Kg) | 85 |
Start Torque(N*M) | 1.6 |
Rated Toque(N*M) | 95.5 |
Poles | 20 |
Material specifications | |
Shaft Material | Iron with quenching and tempering Treatment |
Bearing | HRB or as your request |
Lubrication | Lubrication Grease |
Shell Material | Carbon Steel |
Winding Temperature Class | 150 Centigrade |
Permanent Magnet Material | Rare Earth NdFeB |
Permanent Magnet Material Temperature Class | 150 Centigrade |
Core | High Grade Cold Rolling Silicon Sheet 50WW470 |
Protection Grade | IP54 |
