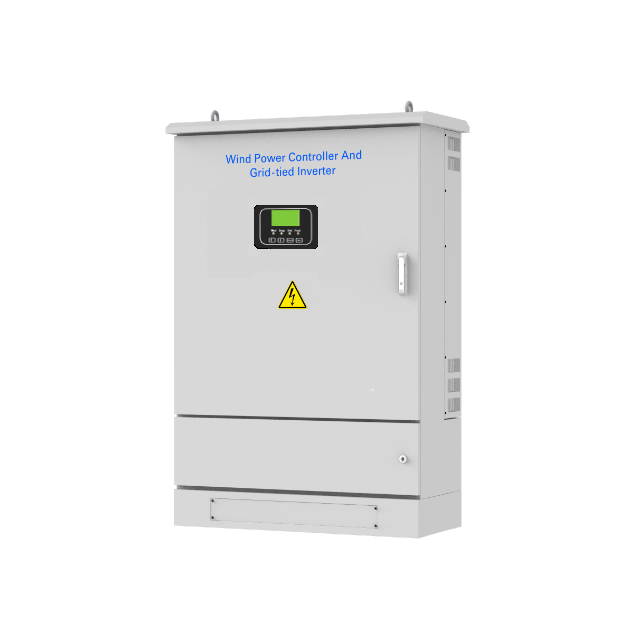

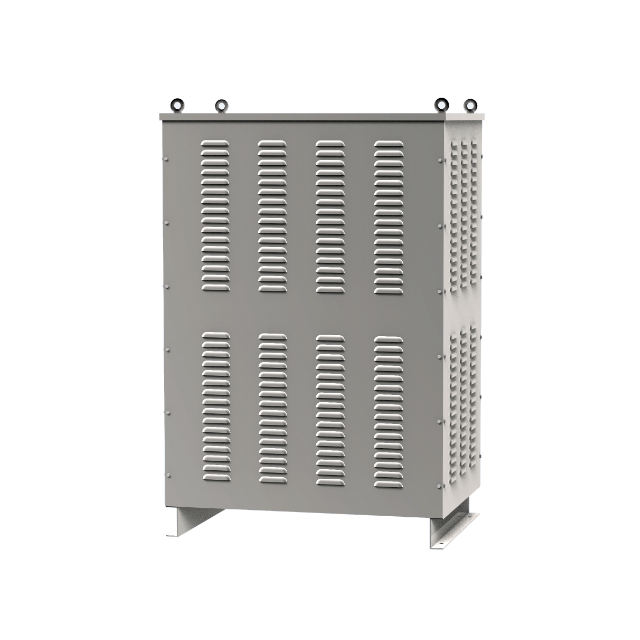

The 20kW On-Grid Controller with Inverter stands as a high-capacity power conversion solution engineered for large-scale renewable energy systems, connecting industrial-grade wind turbines or solar farms to the utility grid.
| Quantity: | |
|---|---|
With a rated AC output of 20kW and maximum DC input of 30kW, this inverter delivers industry-leading efficiency and durability for commercial and utility-scale applications . Its robust design and smart grid capabilities make it a cornerstone for high-yield renewable projects aiming to meet strict European energy standards and maximize return on investment.
Achieving a maximum efficiency of 98% and European efficiency of 97.5%, the inverter ensures minimal energy loss even under high-load conditions . Equipped with dual MPPT trackers and a wide voltage range (200-800V DC), it optimizes power harvest from variable wind speeds and solar irradiance, adapting to dynamic environmental conditions for consistent energy output .
Certified to EN 62109 and EN 50549 standards, the inverter meets rigorous European safety and grid synchronization requirements . It incorporates comprehensive protection mechanisms: anti-islanding, overcurrent, overvoltage, and short-circuit protection, ensuring safe operation for both the system and utility workers. With THDi < 3%, it maintains grid power quality even during peak energy feed-in .
Housed in an IP65-rated enclosure, the inverter withstands extreme temperatures (-35℃ to +60℃) and high humidity (0-95%), suitable for harsh outdoor installations . Integrated RS485 and Wi-Fi connectivity enables remote monitoring, performance analytics, and firmware updates via cloud platforms, allowing operators to optimize energy production and troubleshoot issues remotely.
Power manufacturing facilities, warehouses, and industrial parks with 20kW wind turbines or solar arrays, significantly reducing grid electricity dependence and carbon emissions.
Integrates into wind farms or wind-diesel hybrid systems, converting turbine output for grid feed-in while supporting grid stability through precise power regulation.
Supports energy-intensive operations such as greenhouse clusters, grain processing plants, and large irrigation systems, offsetting high electricity costs.
It weighs 48kg with dimensions 660x520x220mm, requiring sturdy wall mounting or dedicated equipment rooms for installation .
The standard warranty is 5 years, with options to extend to 10 years by registering the product and maintaining regular service records .
The inverter continuously synchronizes with grid frequency (50/60Hz) and adjusts output accordingly, ensuring compliance with utility regulations during frequency fluctuations.
Yes, it supports parallel operation for scaling systems beyond 20kW, with master-slave control to maintain balanced load distribution across inverters.
System Diagram
Technical Parameters
Model | NEGIT 200 |
| Wind turbine input | |
Rated input Power | 20kW |
Max input Power | 30kW |
Rated input voltage | 380Vac |
MPPT voltage range | 100Vac~450Vac |
Rated input current | 30.4A |
Max input current | 45.6A |
cutting speed | 60RPM（factory default，0-1499RPM settable） |
Power tracking | 30 points set power curve |
Speed limit control | Electromagnetic speed limit |
Manual brake | keep pressing the button 5s unload completely ,and then recover by pressing it for another 5s |
Tune the switch on the panel to "BRAKE ",three-phase AC short circuit ,turn to "RUN" to run | |
Brake by overcurrent | 44A（factory default,0-53A settable）it dumps load completely when overcurrent，and will recover after 10mins automatically |
Brake by over rotational speed(optional) | 300RPM（factory default，0~1499RPM settable）unload completely when reached the set rotational speed ,and recover automatically after 10mins |
Brake by over wind speed(optional) | 18m/s（0~30m/s settable），it dumps load completely when reached the set wind speed ,and recover automatically after 10mins |
| AC output | |
Grid type | Three phase |
Rated output power | 20kW |
Max output power | 22kW |
Rated output voltage | 380Vac |
Grid voltage range | 85%~110% of rated grid voltage |
Rated grid frequency | 50Hz/60Hz adaptive |
work frequency range | 49Hz~51Hz/59Hz~61Hz |
Rated output current | 30.4A |
Rated power factor | ＞0.98 |
Thdi | ＜5%（at rated power） |
DC component | ＜0.5% |
soft start | Yes |
Restoring grid-connected functionality | Yes |
Auto on/off | Yes |
| Protection functions | |
grid overvoltage/undervoltage protection | Yes |
grid over frequency/under frequency protection | Yes |
output short circuit protection | Yes |
Grid power failure protection | Yes |
Anti-islanding protection | Yes |
over temperature protection | Yes |
Lightning protection | Yes |
Residual current protection | Yes |
General Parameters | |
Display mode | LED+LCD |
Display information | Display: wind Voltage, Wind current，Wind power, Wind Speed, Pole Paris; Inverter voltage, Inverter current, Inverter Power, Inverter Frequency, Relay Time, power generation; BUS Voltage, Air speed, Temperature, Time, Language, ID, etc. Status: Manual brake, automatic brake, fault indication, grid-connected state, relay state, Wind cut-in, etc. |
Monitoring mode(optional) | RS485/GPRS |
Monitoring contents | Telemetry: wind turbine speed, grid voltage, output power, power generation. Remote signal: wind turbine status, wind power grid-connected inverter over-current alarm, over-voltage alarm, over-temperature alarm, fault alarm, etc. Remote control: modify the parameters of the wind power grid-connected inverter and control the braking of the wind turbine |
Efficiency | ＞95% |
Ambient temperature | -20℃～+40℃ |
Humidity | 0%~90%，no condensing |
Vibration resistance | Can withstand sine wave vibration with a frequency of 10Hz~50Hz and an amplitude of 0.35mm |
Noise | ≤65dB |
Cooling mode | Forced fan cooling |
Cover protection class | IP65（dump load IP54） |
Note: Part of parameters can be adjusted according to customer’s specific demand. | |
