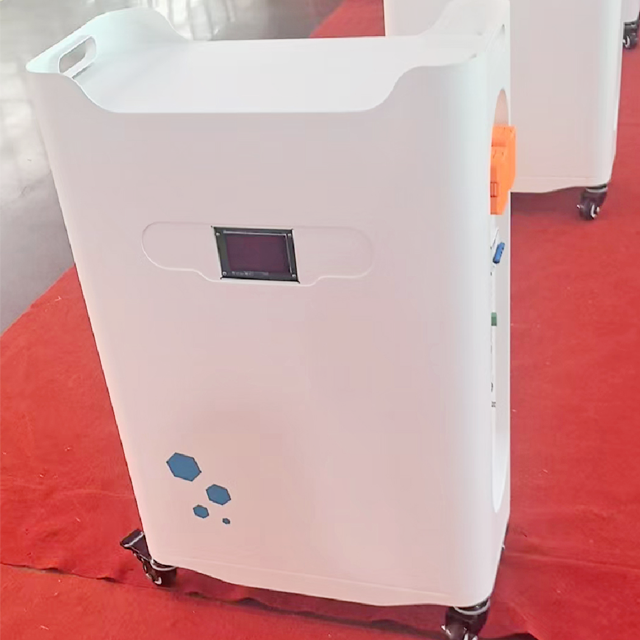

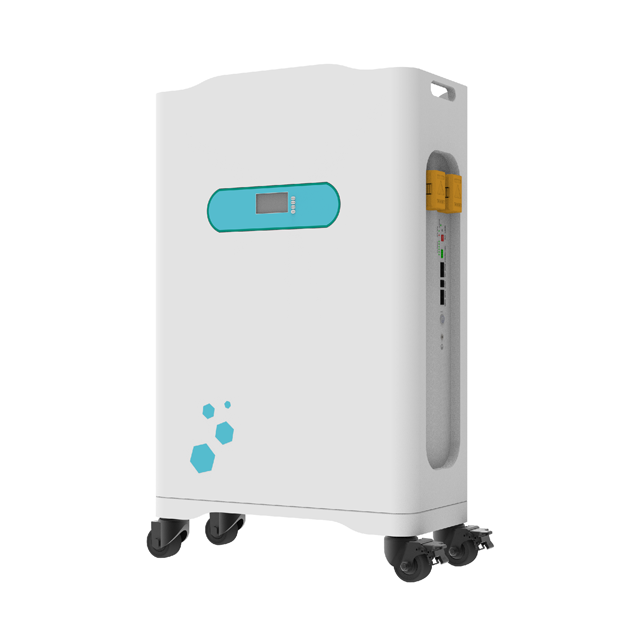

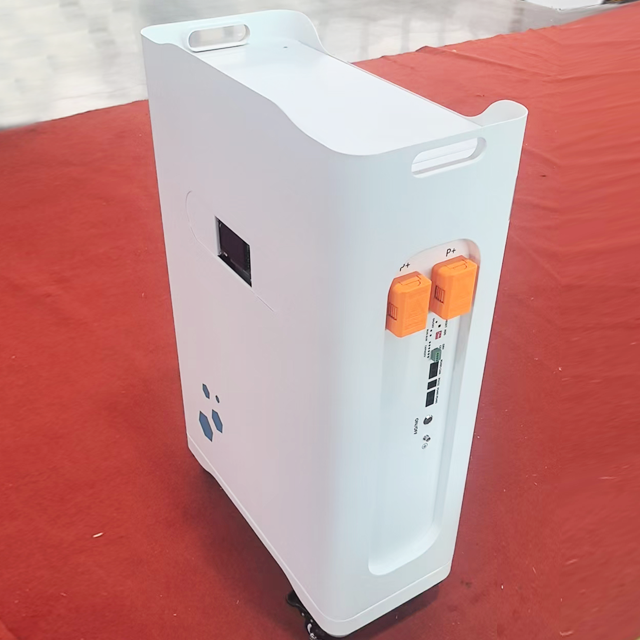

51.2v 280ah Battery 14kw.h Lifepo4 Battery Bank 6000cycle times
Brief Introduction
lithium iron phosphate battery system is a standard battery syystem unit, customers can choose a certain number of lithium battery according to their needs, byconnecting parallel to form a larger capacity battery pack,to meet the user's long-term power supply needs. The product is especially suitable for energy storage applications with high operating temperatures, limited installation space, long power backup time and long service life.
System voltage, Current, cell voltage, cell temperature, module temperature
SOC
Intelligent algorithm
Communication
CAN/RS-485
Operation
Operating Temperature Range
Charge Temperature 0℃~60℃;
Discharge Temperature -20℃~60℃;
Transport or Storage Temperature Range
-20℃~45℃
Humidity
15%~85% (No Condensing)
Warranty
Product Warranty
5 Years
Performance Warranty
10 Years
Product Properties
energy storage product's positive electrode materials are lithiumiron phosphate, battery cells are managed effectively by BMS with better performance,thesystem's featuresas below:
The whole module is non-toxic, non-polluting and environmentally friendly;
Cathode material is made from LiFePO4 with safety performarce and long cycle life Battery management system with better performance, possesprotection function like over-discharge, over-charge, over-current, abnormal temperature.

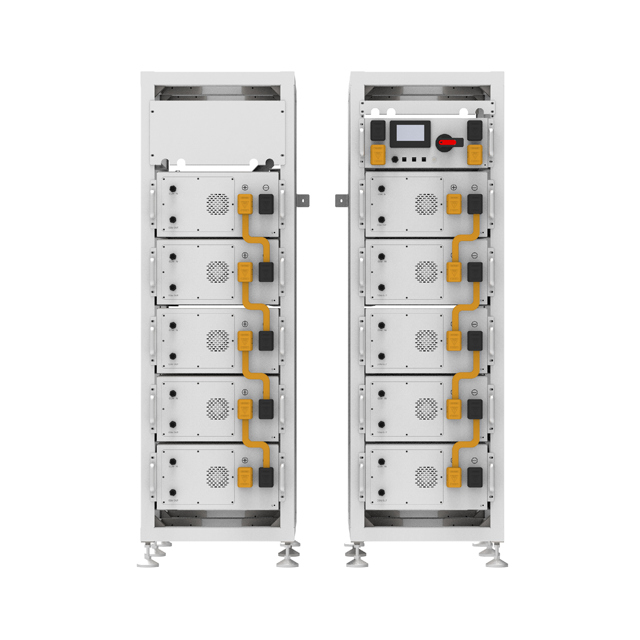

Self-management on charging and discharging, Single coree balancing function. Intelligent design configures integrated inspection module. Flexible configuration, multiple battery modules can be in paralleI for expanding capacity and power.
Flexible configurations allow parallel of multi battery for loonger standby time. Self-ventilation with lower system noise. Less battery self-discharge, then recharging period can be up to 10 months during the storage.
No memory effect so that battery can be charged and dischargedshallowly. With wide range of temperature for working environment,-20°C~+60°C,circulation span and discharging performance are well under high tenmperature.
