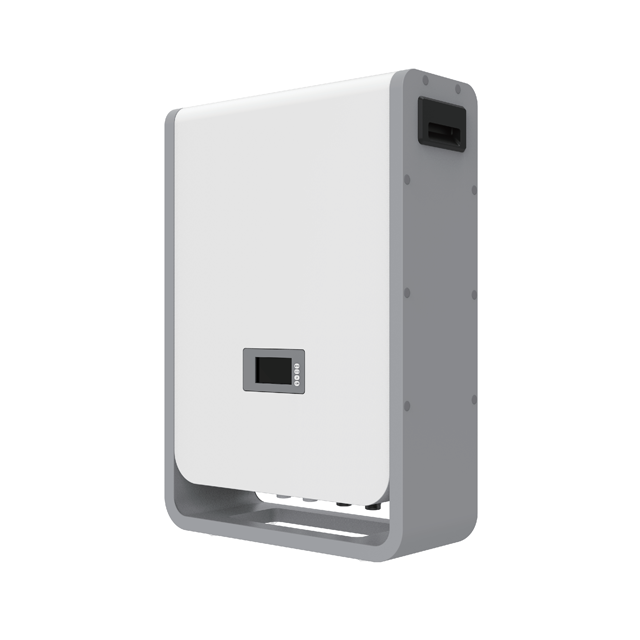

51.2V 100AH

Model

OTW48100

Battery Type

LifePO4(LFP)

Nominal Voltage(V)

51.2V

Nominal Capacity(WH)

5120WH

Usable Capacity(WH)

4608WH

Dimension(mm)

475*221*675

59.6

Cycle Life

>6000 cycles @25℃±2℃,80%DOD

Discharge Voltage(V)

44.8

Charge Voltage(V)

56.8

Charge/Discharge Current(A)

50A(Recommended)

≤30mΩ

Power Consumption

<2W (Work) <100mW(Sleep)

Monitoring Parameters

System voltage, Current, cell voltage, cell temperature, module temperature

SOC

Intelligent algorithm

Operating Temperature Range

Charge Temperature 0℃~60℃;

Discharge Temperature -20℃~60℃;

Transport or Storage Temperature Range

-20℃~45℃

Product Warranty

5 Years
