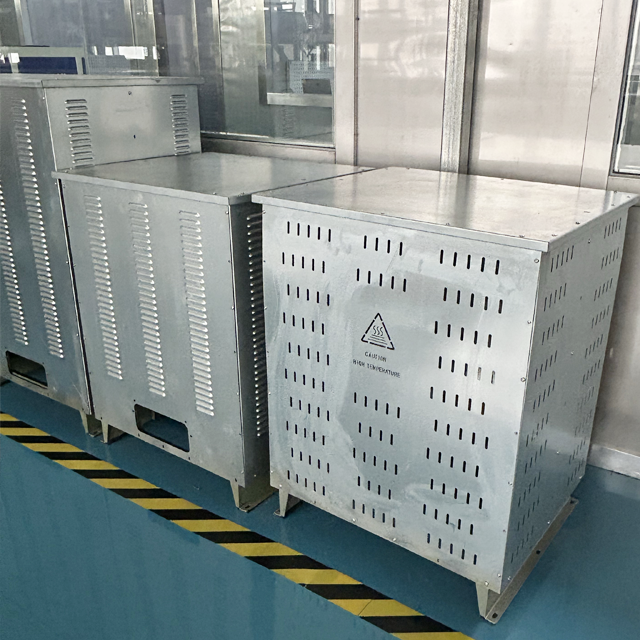

Dumpload box

wind turbine dump load (also called a diversion load or dummy load) is a critical protective component in small-to-medium wind power systems, especially off-grid setups.


Core Definition
It is typically a high-power resistive unit (often made of corrosion-resistant alloy or ceramic resistors) that works with a charge controller to absorb and dissipate surplus electricity generated by the wind turbine.
Primary Functions
Battery Overcharge Protection
When the battery bank is fully charged and system load demand is low, the charge controller automatically diverts excess turbine-generated power to the dump load. This prevents battery damage from overcharging and stabilizes system voltage.
Turbine Safety & Speed Control
Unlike solar panels, wind turbines risk dangerous over-speeding when disconnected from a load. The dump load maintains an electrical load on the generator. In high winds, it increases electrical resistance, creating magnetic damping to slow the turbine, acting as an electronic brake to avoid mechanical failure from over-rotation.
System Stability
It stabilizes voltage and current output, safeguarding inverters, controllers, and other electronic parts from damage caused by voltage spikes or power surges during sudden wind gusts.
Working Principle
The charge controller continuously monitors battery voltage and turbine output. When batteries reach full capacity, it switches the surplus energy flow from batteries to the dump load, which converts excess electricity into heat and releases it into the surrounding environment. This keeps the turbine operating safely and efficiently without interrupting power generation.
