Off-grid wind turbine systems provide complete energy independence, operating separately from the main power grid. These stand-alone systems generate and store electricity for immediate use, making them ideal for remote locations, cabins, agricultural operations, and telecommunications where grid connection is unavailable or impractical.
Core Components
Wind Turbine: Captures wind energy through blades and converts it to mechanical rotation. Key specifications include rotor diameter, rated power output, and cut-in/cut-out wind speeds.
Tower: Elevates the turbine to access stronger, smoother winds above ground turbulence. Typically requires significant height above nearby obstacles.
Charge Controller: Regulates voltage from the turbine, prevents battery overcharging, and maximizes energy harvest through Maximum Power Point Tracking (MPPT) technology.
Battery Bank: Stores surplus energy for use during calm periods. Deep-cycle batteries (lead-acid or lithium-ion) are essential for repeated discharge-recharge cycles.
Inverter: Converts DC power from batteries to AC power for appliances. Pure sine wave inverters are recommended for sensitive electronics.
Dump Load: Diverts excess energy when batteries are full, typically as heat for water or space heating.
Backup Generator: Provides power during extended low-wind periods, ensuring system reliability.

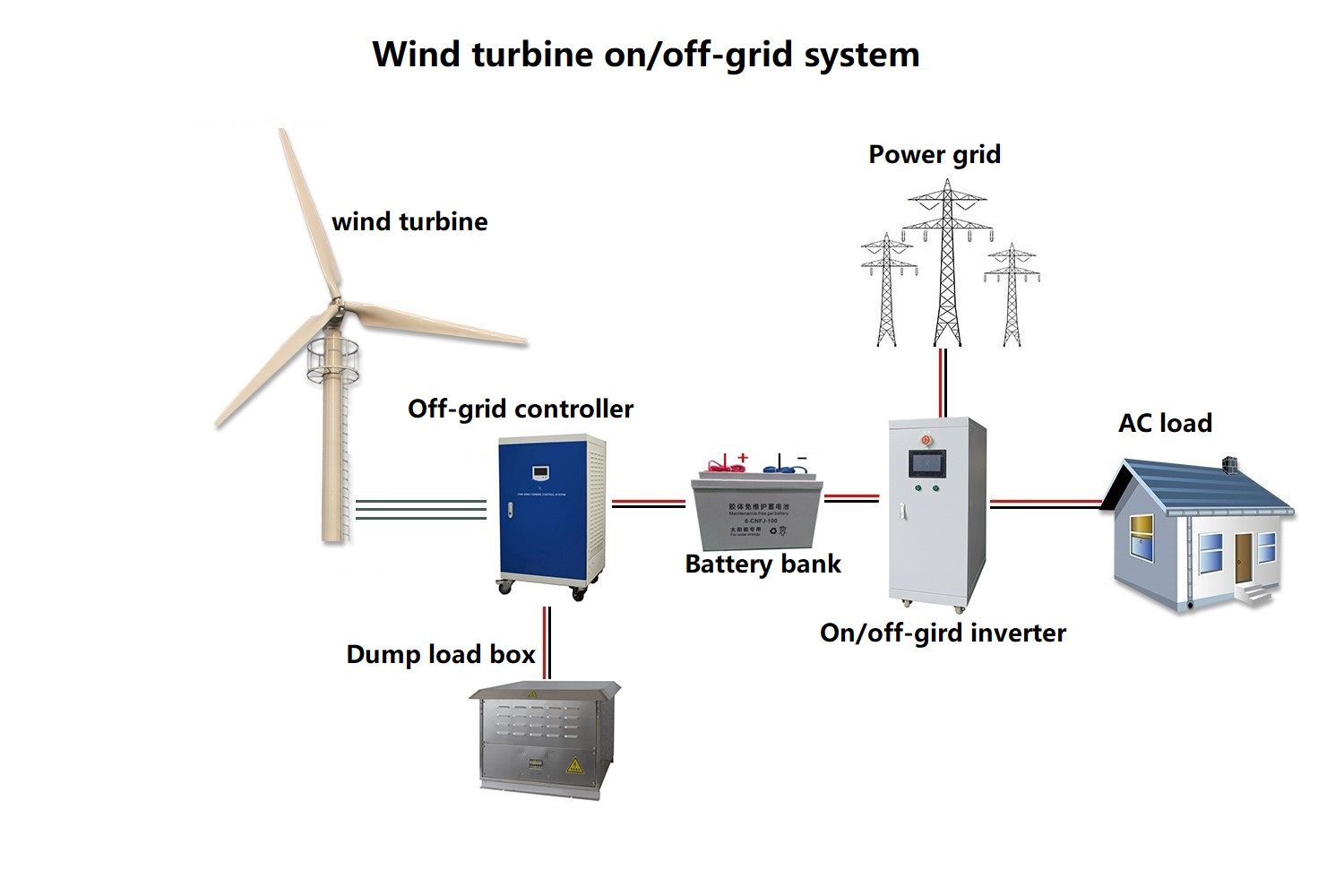

System Operation
The system works through continuous energy management:
Wind turns turbine blades, generating electricity
Charge controller regulates power to batteries
Inverter converts DC to AC for household use
Excess energy is diverted to dump loads
Backup generator activates during low-wind conditions
Key Considerations
Energy Audit: Essential first step to calculate daily energy needs
Wind Assessment: Requires minimum 4-5 m/s average wind speed
Proper Sizing: Components must match energy demands and wind resources
Maintenance: Regular monitoring of batteries and mechanical components
Applications
Remote homes and cabins
Agricultural operations
Telecommunications equipment
Water pumping systems
Navigation aids
Advantages & Challenges
Pros:
Complete energy independence
No utility bills or rate hikes
Environmentally friendly
Enables modern amenities in remote areas
Cons:
High initial investment
Intermittent power generation
Regular maintenance required
Requires adequate space and wind resources
Conclusion
Off-grid wind systems offer reliable energy independence for suitable locations. While requiring significant initial investment and maintenance, they provide long-term energy security and environmental benefits for those beyond grid reach. Proper design and sizing are crucial for an effective system that matches specific energy needs and local wind conditions.
