Wind turbine on-grid systems convert wind energy into electricity and deliver it directly to the main power grid. These systems operate alongside traditional power infrastructure without requiring battery storage. They form the basis of commercial wind farms and are also used for residential and small-scale applications.
Primary Purpose
The main objectives are to reduce grid electricity consumption and sell surplus power to utility companies, lowering energy costs while contributing renewable energy to the grid.

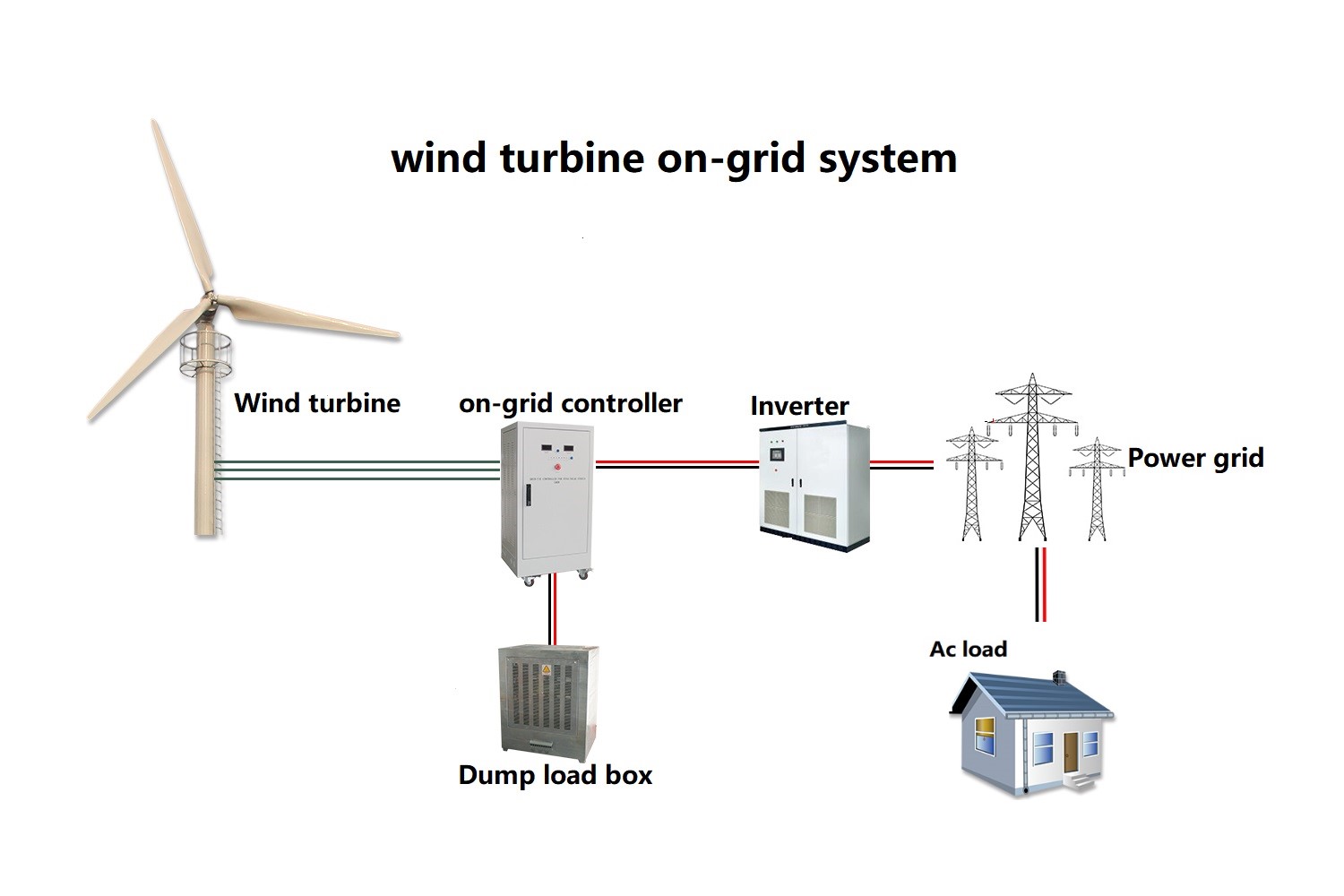

Key elements include:
Wind Turbine: Consists of blades, rotor, nacelle, and tower. Captures wind energy and converts it to mechanical rotation.
Generator: Transforms mechanical energy into electrical energy. Common types:
DFIG: Enables variable speed operation
PMSG: Used in direct-drive designs
Power Converter: Critical component that ensures output matches grid specifications for voltage, frequency, and phase.
Transformer: Increases voltage to match grid requirements.
Control System: Monitors wind conditions and optimizes performance.
Protection Systems: Safely disconnects during grid disturbances.
Bi-directional Meter: Measures both consumption and export of electricity.
Wind turns turbine blades
Rotation drives the generator
Converter processes the electricity
Transformer adjusts voltage
System synchronizes with grid
Electricity distributes through network
Key Features
Net metering credits for excess generation
Automatic shutdown during grid outages
Grid-dependent operation
Advantages
Reduced electricity costs
Potential revenue from energy sales
Low operating expenses
Environmentally friendly
Scalable solutions
Challenges
No power during grid failures
High initial investment
Intermittent generation
Complex regulatory requirements
On-grid wind systems are essential to renewable energy transition, offering clean power generation and grid integration. While facing intermittency and cost challenges, they provide significant long-term benefits for sustainable energy development.
| Quantity: | |
|---|---|
3kw-200kw
Naier
