X Type Wind Turbine Introduction

● Low start up wind speed, compact, light,beautiful and with little vibration.
● Easy installation, flange connection.
● Blades using aluminum alloy, spray-paint and oxidation treatment of the blades surface, strengthen the anti-corrosion level, more beautiful and durable.Color optional.
● Patented permanent magnet ac generator with special stator (maglev generator), effectively reduce torque, make only 1/3 torque of ordinary generator, well match the wind wheel and generator, and ensure the performance of whole system.
● Controller, inverter can be matched according to customers’specific needs.

Quantity:
Availability:





Inquire Add to Basket

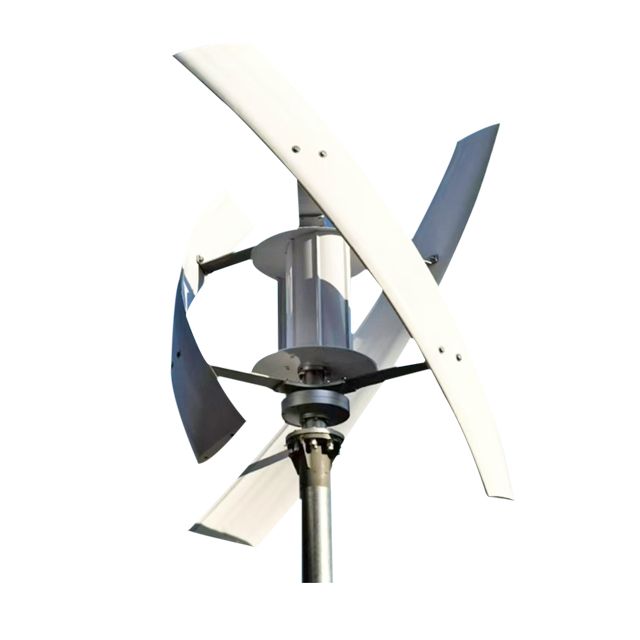

X Type Wind Turbine

Product Description

Model	NE-X3

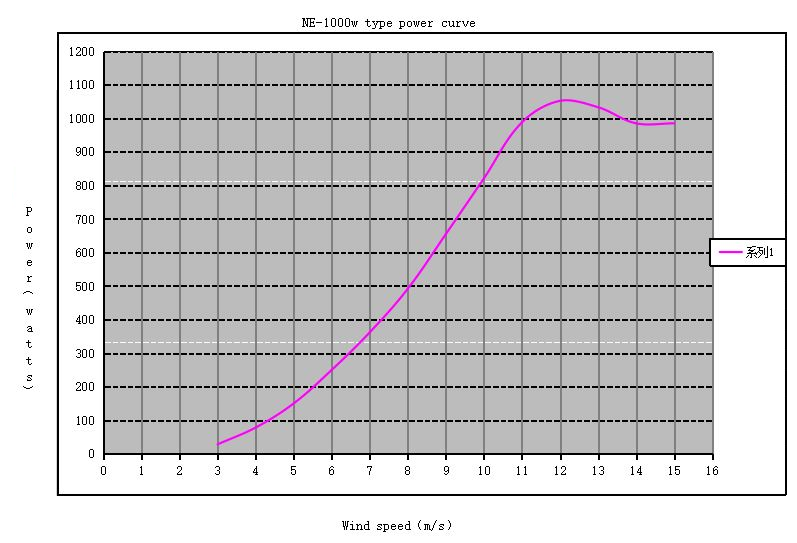

Performance
Rated Power	1000w
Start Wind speed	2m/s
Rated Wind speed	11m/s
Working wind speed	4-20m/s
Safety Wind speed	45m/s
Physical Parameters
Blades Height	1.5m
Blades Rotor Diameter	0.78m
Blades Material&Quantity	Casting aluminum alloy
Turbine weight	35kg
Generator Parameters
Generator Type	maglev
Rated speed	500r/m
Start Torque	0.32Nm
Option Voltage	24/48/96/120/220V
Protection Grade	IP54
Working Temperature	From-40℃-80℃
Life time	20 Years
