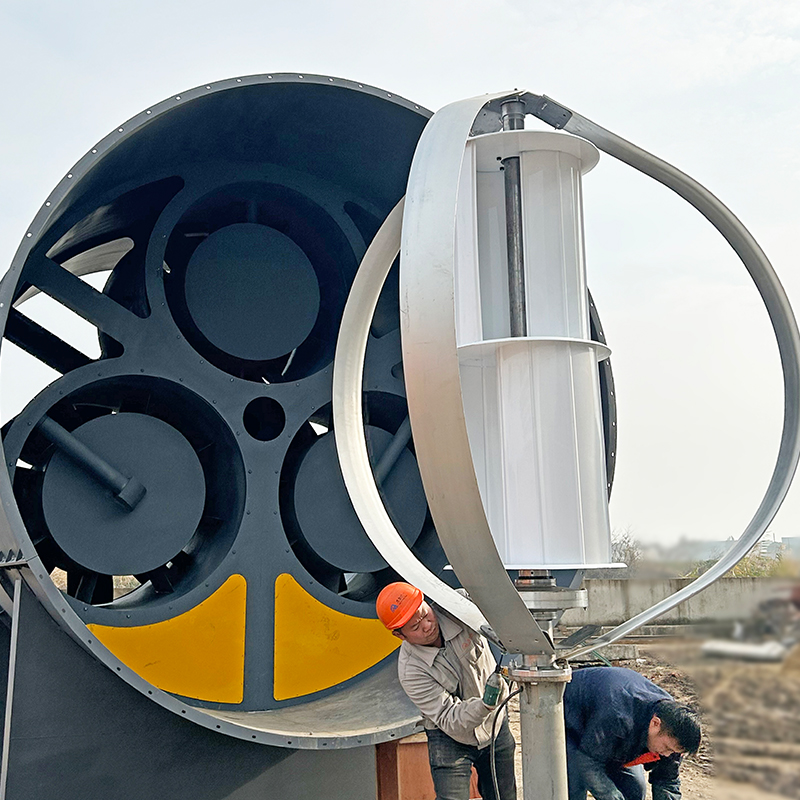

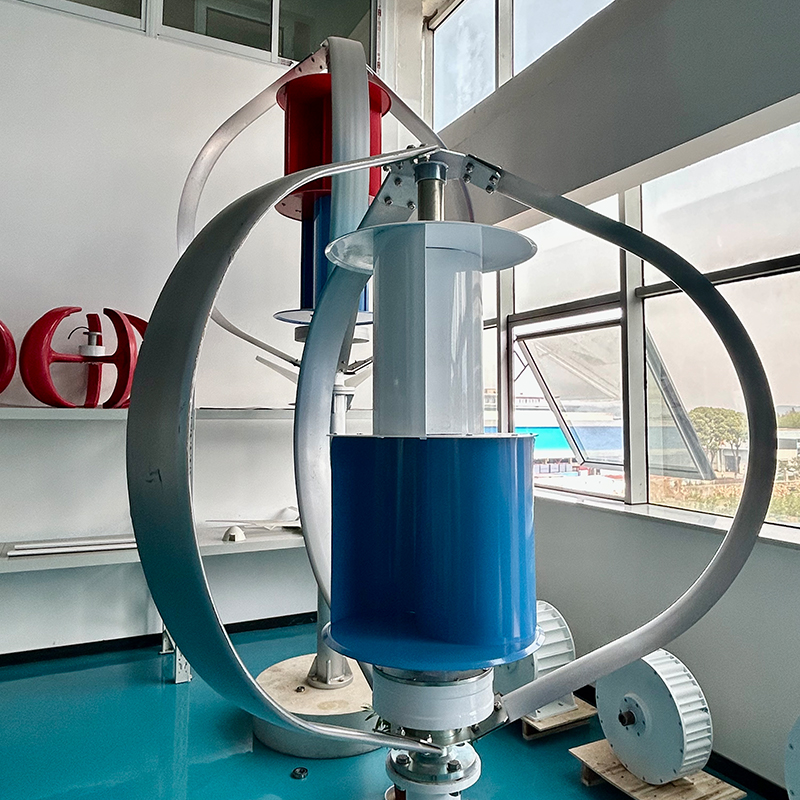

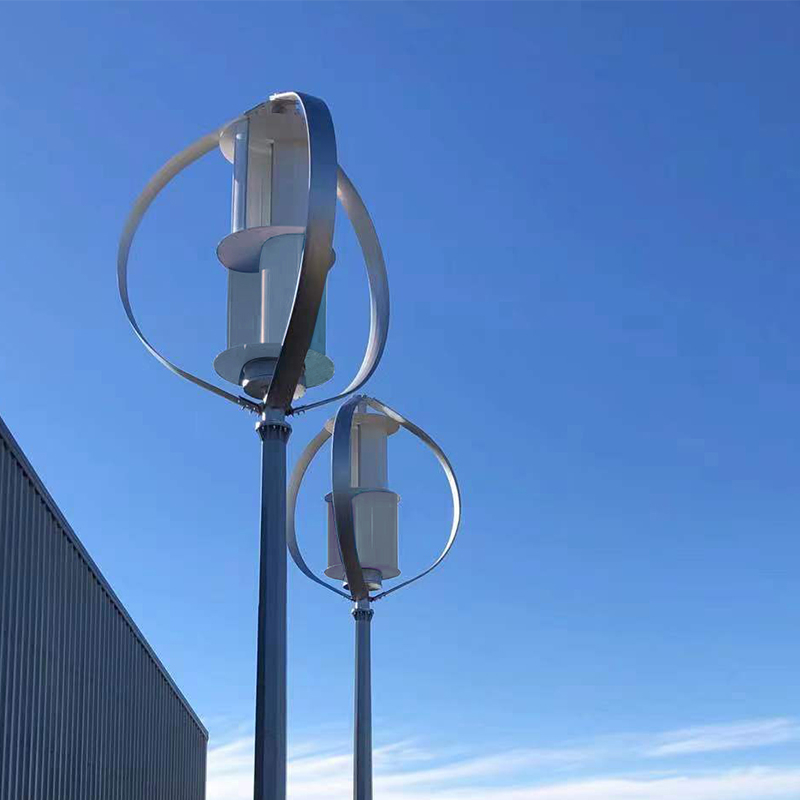

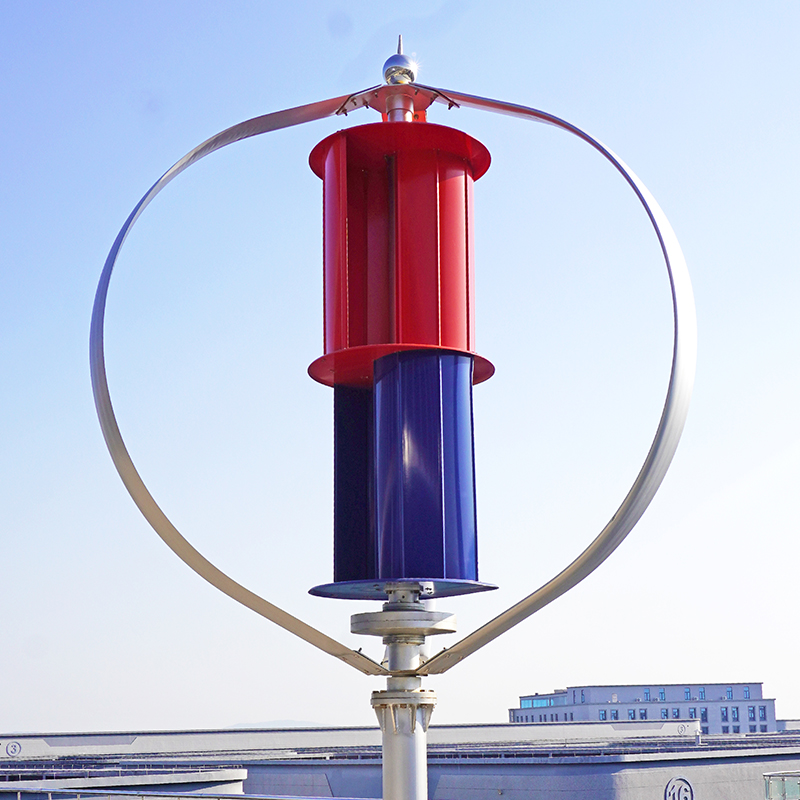

The Vertical Axis Q10 Type 5kW Small Wind Turbine represents the culmination of 15 years of industry experience in renewable energy technology, delivering enhanced performance and reliability for small to medium-scale power generation.
| Quantity: | |
|---|---|
| Rated voltage | 220/380V | Rated voltage | 3m/s |
| rated wind speed | 12m/s | Wind turbine length | 3.52m |
| Wind turbine diameter | 3.6m | flange connection | DN200 |
| Leaf material | High-strength aluminum extrusions | Number of leaves | 3 high-speed blades + auxiliary wind wheel |
| Braking method | electromagnetic braking | Motor type | Three-phase AC magnetic levitation/permanent magnet external rotor generator |
This advanced vertical axis turbine combines proven engineering with innovative design, making it suitable for diverse applications from rural electrification to commercial microgeneration. Optimized for wind speeds between 3m/s and 25m/s, it achieves an impressive annual energy output of up to 8,500 kWh in optimal conditions, providing substantial energy savings for businesses and communities. Backed by our extensive industry expertise, the turbine features multiple patent protections covering its aerodynamic design and power management systems, ensuring superior performance and durability. Fully compliant with EU CE standards and IEC 61400-2 certification, it represents a trustworthy investment in renewable energy technology.
Benefiting from 15 years of design refinement, the turbine features a proprietary 3.52m diameter vertical axis rotor with optimized blade curvature that achieves a maximum power coefficient of 0.43. This advanced design captures energy from multidirectional winds without requiring orientation mechanisms, increasing energy harvest by up to 20% in turbulent wind conditions.
The turbine holds EU CE certification under Machinery Directive 2006/42/EC, EMC Directive 2014/30/EU, and RoHS 2011/65/EU, ensuring full compliance with European market requirements . It is also certified to IEC 61400-2:2013 standards, verifying its performance, safety, and durability through rigorous third-party testing.
Leveraging our extensive industry experience, the turbine incorporates reinforced composite blades, a sealed direct-drive generator, and weather-resistant components (IP67 rating) that withstand extreme environmental conditions from -30°C to +55°C . This robust construction ensures reliable operation with minimal maintenance requirements.
Building on years of performance data analysis, our proprietary controller optimizes energy capture through adaptive algorithms that learn local wind patterns. The system provides stable 220V/380V AC output with integrated grid protection features, enabling seamless connection to both standalone and grid-tied applications.
Restaurants, small hotels, and retail facilities utilize the 5kW turbine to offset grid electricity costs, reducing operational expenses while enhancing their sustainability credentials and brand reputation.
In areas with limited grid access, the turbine provides reliable power for community centers, schools, and healthcare facilities, often deployed in clusters to form microgrid systems supporting larger energy demands.
Farms and rural enterprises use the turbine to power irrigation pumps, ventilation systems, and on-site processing equipment, reducing reliance on expensive diesel generators and fluctuating grid electricity prices.
Manufacturing facilities and industrial parks deploy the turbine to power auxiliary systems and lighting, reducing main grid dependency and improving energy resilience against supply disruptions.
Our extensive experience has enabled design optimizations based on real-world performance data, resulting in enhanced durability, improved energy capture efficiency, and user-centric features. We've refined component selection, manufacturing processes, and quality control based on feedback from thousands of installations worldwide.
Our patents protect the aerodynamic blade profile, adaptive power regulation algorithms, and mounting system innovations. These technologies collectively improve energy capture by up to 20% in variable wind conditions compared to conventional designs.
Benefiting from our engineering experience, the turbine is designed for a 20-year service life with proper maintenance. It comes with an industry-leading 6-year standard warranty, with optional extended coverage available up to 15 years – a reflection of our confidence in its durability.
The Q10 Type 5kW incorporates 15 years of incremental improvements, including 12% higher energy efficiency, 30% reduced maintenance requirements, and 50% quieter operation than our first-generation vertical axis turbines. It also features more sophisticated power electronics for better grid integration.
