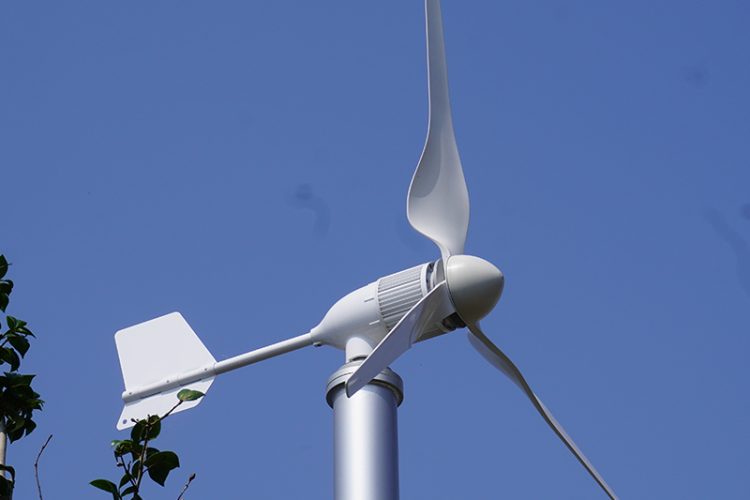

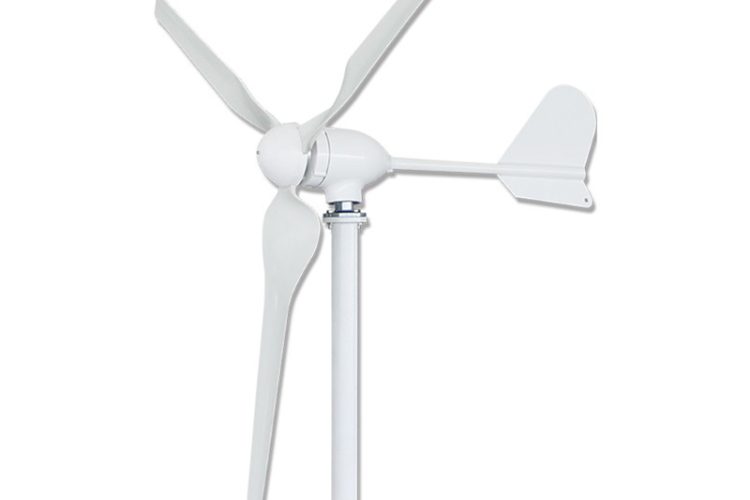

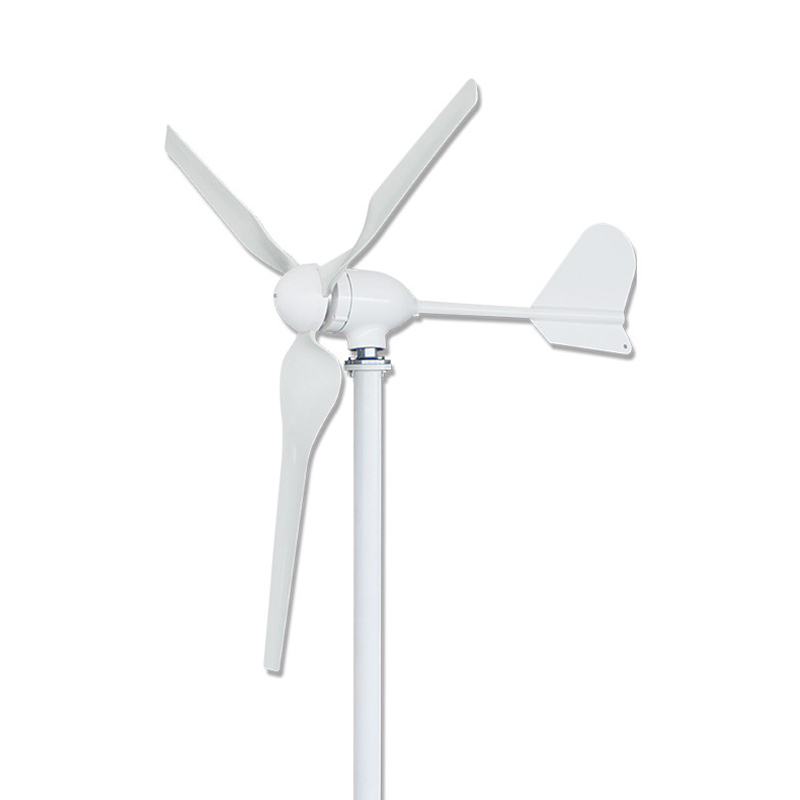

The 1kW Household Horizontal Wind Turbine from Yixing Naier Wind Power is a compact, eco-friendly energy solution for farms and residential rooftops. Boasting a 2m/s start-up wind speed (among the lowest for small turbines), 2.2m rotor diameter, and lightweight 26kg design, it’s easy to install without heavy equipment. It features a direct-drive 3-phase AC PMG (no noisy gearbox) and patented safety tech—like electromagnetic brakes—for stable operation up to 30m/s. Perfect for powering household appliances or farm gear, it reduces grid reliance and lowers electricity costs, fitting well in areas with moderate wind resources.
| Quantity: | |
|---|---|
| Start-up wind speed | 2m/s | Working wind speed | 2.5-30m/s |
| Rotor diameter | 2.2m | Blade | 3pcs reinforced fiber glass |
| Blade length | 110cm | Shell material | Casting aluminum alloy |
| Generator type | 3-phase AC PMG | Rated voltage | 24/48V |
| Tower type | 6m guy wire tower | Weight | 26kg |
The turbine’s overall components are engineered to be lightweight and flexible, eliminating the need for heavy-duty lifting equipment. Its modular design allows for quick assembly and disassembly, reducing installation time and labor costs. Even users without extensive technical experience can complete the setup with basic tools, supported by the manufacturer’s detailed guidelines. The matching 6m guy wire tower further simplifies installation, as it requires minimal ground preparation compared to fixed concrete bases.
Equipped with company-patented safety technologies, the turbine ensures reliable operation in extreme weather conditions (e.g., strong winds up to 30m/s working wind speed). Core safety features include electromagnetic brakes that activate automatically when wind speeds exceed the safe threshold, and an intelligent windward angle adjustment system. Real-time monitoring of wind speed and turbine operation data allows the system to adapt dynamically, preventing overloading, blade damage, or structural stress — critical for long-term durability.
Adopting a 3-phase AC Permanent Magnet Generator (PMG) with an upwind design, the turbine eliminates the need for a gearbox, a common source of noise and maintenance issues in traditional wind turbines. This design enables a 2m/s start-up wind speed (significantly lower than industry averages for small turbines), ensuring power generation even in low-wind environments. Additionally, the automatic wind direction adjustment function optimizes rotor alignment with wind flow, maximizing energy capture. The turbine operates with minimal vibration and low noise, making it suitable for residential areas where quiet performance is essential.
Farms often require consistent power for irrigation systems, livestock feeding equipment, and on-site living quarters. The 1kW turbine can supplement or replace grid power, reducing reliance on fossil fuels and lowering electricity bills. Its compact size allows installation near farm buildings or pastures without disrupting agricultural activities.
For homeowners, especially those in suburban or rural areas with unobstructed wind access, the turbine can be mounted on rooftops (with proper structural reinforcement) to power household appliances like refrigerators, lighting, and small electronics. It integrates well with off-grid systems (e.g., paired with batteries) or can feed excess power back to the grid (where grid-connection is permitted).
In remote areas without grid access — such as mountain cabins, rural schools, or community water pumps — the 1kW turbine provides a sustainable power source. Its low start-up wind speed ensures consistent energy output, while the 26kg weight makes transportation to remote locations feasible.
The turbine has a 2m/s start-up wind speed, which is among the lowest for small household turbines. It can begin generating power when wind speeds reach this threshold and operate efficiently within the 2.5-30m/s working wind speed range.
While the turbine is lightweight (26kg), rooftop installation requires checking the structural load capacity of the building first. It is most suitable for reinforced concrete or metal rooftops; wooden or weak rooftops may need additional support. The manufacturer recommends consulting a local structural engineer if unsure.
Thanks to the gearbox-free design, maintenance needs are minimal. Routine checks (every 6-12 months) include inspecting blade tightness, cleaning the generator, and verifying the safety brake system. The reinforced fiber glass blades are resistant to corrosion and UV damage, ensuring a service life of 10+ years with proper care.
