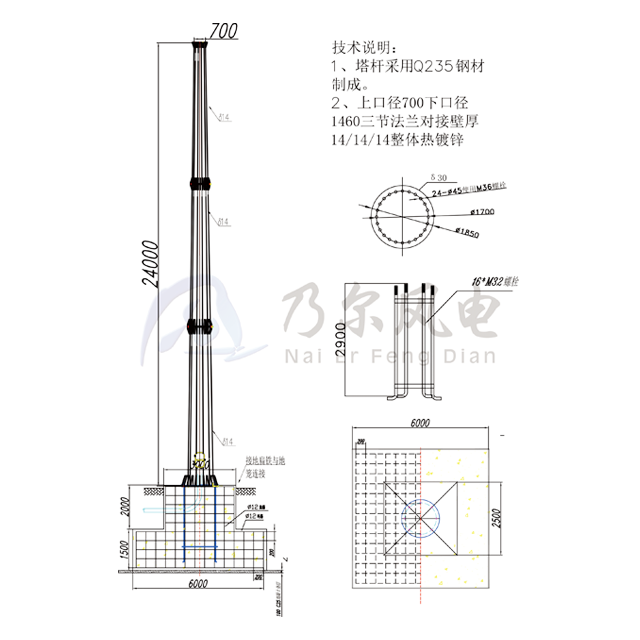

Wind Turbine Tower Specifications (100kw 24m)
Parameter Category | Parameter | Value | Notes/Units |
| Tower General | Height | 24.0 meters | From filename "24m" |
| Material | Steel (likely Q235) | Material grade not specified |
| Top Diameter | 700 mm |
|
| Bottom Diameter | 1460 mm |
|
| Wall Thickness | 14 mm | Uniform across all sections |
| Number of Sections | 3 | Flange-connected sections |
| Coating | Hot-dip galvanized |
|
Foundation | Base Type | Concrete cushion layer | Thickness not specified |
| Grounding System | Grounding Conductor | Flat Iron |
|
| Connection Method | To rebar cage |
|
| Flange System | Bolt Usage | Specified (details missing) | "Using bolts" without dimensions |
| Potential Flange Thickness | 30 mm | From "δ30" notation |
Key Interpretations:
Wall Thickness:
"14/14/14" explicitly confirms uniform 14mm thickness for all three tower sections
Consistent thickness throughout the structure
Construction Details:
Tapered cylindrical design (700mm top → 1460mm base)
Three-section construction with flanged connections
Full hot-dip galvanizing for corrosion protection
Foundation & Grounding:
Concrete cushion foundation (details incomplete)
Grounding flat iron connected to rebar cage
Electrical continuity integrated with foundation system
Material: Q235 steel assumed based on:
Standard material for similar Chinese wind towers
Consistent specification in previous designs
Absence of alternative material designation
