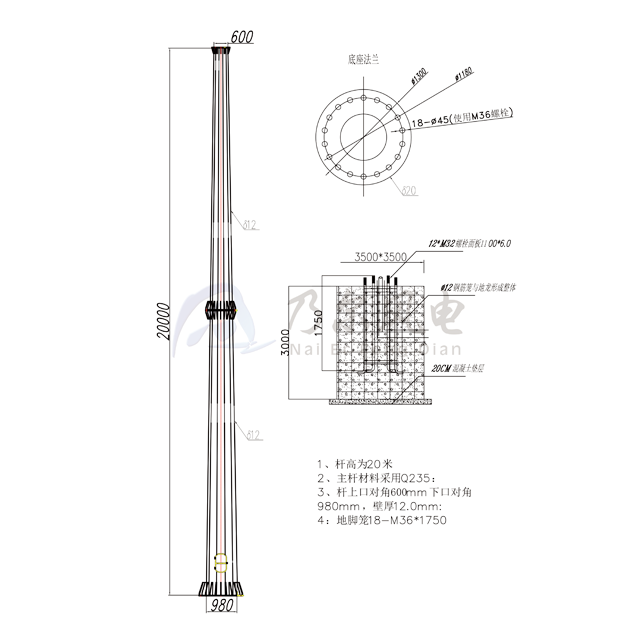

Wind Turbine Tower Specifications (20m for 40kW)
Parameter Category | Parameter | Value | Notes/Units |
| Tower General | Height | 20.0 meters |
|
| Material | Q235 Steel |
|
| Top Cross-section (Diagonal) | 600 mm | Square cross-section |
| Bottom Cross-section (Diagonal) | 980 mm | Square cross-section |
| Wall Thickness | 12.0 mm |
|
| Base Flange Assembly | Anchor Bolt Quantity | 18 |
|
| Anchor Bolt Specification | M36 × 1750 mm | Length 1750 mm |
| Bolt Circle Diameter (PCD) | 945 mm | "18-945" indicates PCD |
| Flange Plate Diameter | 1100 mm | From "11006.0" (interpreted) |
| Flange Plate Thickness | 60 mm | From "11006.0" (interpreted as 1100×60) |
Foundation | Foundation Size | 3500 × 3500 mm | Square base |
| Cross-section Calculations | Top Width (Side) | ≈ 424.3 mm | 600/√2 (square section) |
| Bottom Width (Side) | ≈ 693.0 mm | 980/√2 (square section) |
Key Interpretations:
Cross-section: Diagonal measurements indicate square cross-sections:
Top width = 600/√2 ≈ 424.3 mm
Base width = 980/√2 ≈ 693.0 mm
Flange Plate:
"11006.0" interpreted as 1100 mm diameter × 60 mm thickness (consistent with previous drawings)
Bolt pattern "18-945" indicates 18 bolts on 945 mm Pitch Circle Diameter
Anchor Bolts:
18 × M36 anchor bolts
1750 mm length specified
Material:
Q235 steel (equivalent to ASTM A36, yield strength 235 MPa)
Hot-dip galvanizing likely required (though not explicitly stated)
Unspecified Parameters:
Foundation depth and concrete specifications
Coating/surface treatment details
Electrical/grounding system
Rebar cage details
Connection method between tower sections
