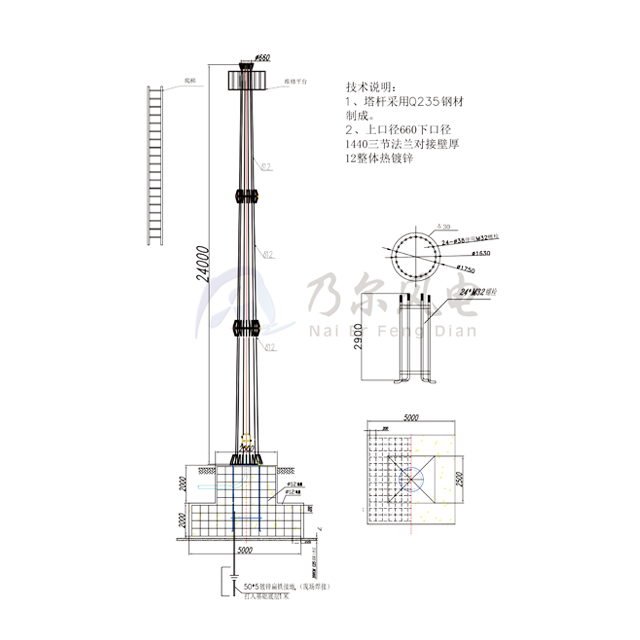

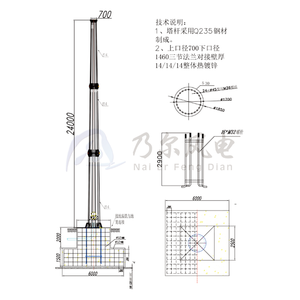

Wind Turbine Tower Specifications (24m for 50kW)
Parameter Category | Parameter | Value | Notes/Units |
| Tower General | Height | 24.0 meters | From filename "24m" |
| Material | Steel (likely Q235) | Material grade not specified |
| Top Diameter | 660 mm |
|
| Bottom Diameter | 1440 mm |
|
| Wall Thickness | 12 mm | Uniform thickness |
| Number of Sections | 3 | Flange-connected sections |
| Coating | Hot-dip galvanized |
|
| Structural Features | Maintenance Platform | Included | Dimensions not specified |
| Access Ladder | Included |
|
| Grounding System | Grounding Conductor | Galvanized Flat Iron |
|
| Installation Method | Site-welded |
|
| Installation Depth | Unspecified | 'Depth missing' |
| Foundation | Base Type | Concrete cushion layer | Thickness not specified |
Key Interpretations:
Construction:
Three-section tapered tower (660mm top → 1440mm base)
Flanged connections between sections
Uniform 12mm wall thickness throughout
Hot-dip galvanized corrosion protection
Access Features:
Maintenance platform (size/detail not specified)
Vertical access ladder
Grounding:
Galvanized flat iron electrode
Field-welded to foundation system
Depth specification incomplete ("m" = meter unit only)
Material:
Q235 steel assumed based on:
Standard material for Chinese wind towers
Consistent specification in similar designs
Absence of higher-grade material notation
