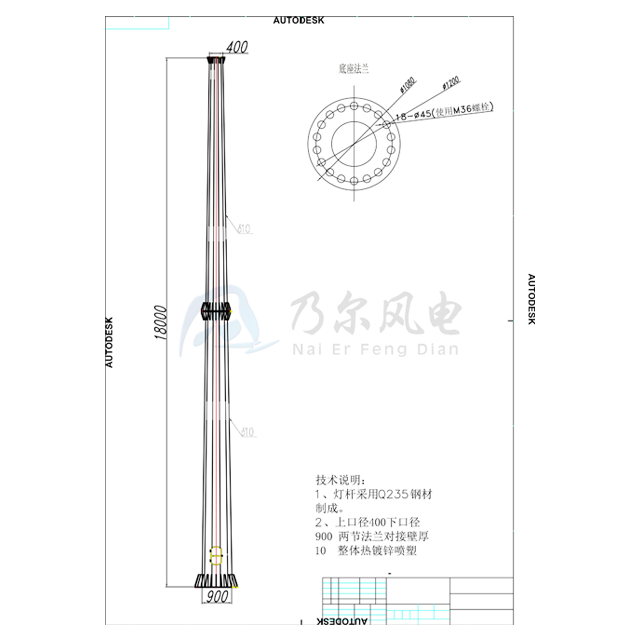

Wind Turbine Tower Specifications (18m for 30kW)
Parameter Category | Parameter | Value | Notes/Units |
| Tower General | Height | 18.0 meters | |
Material | Q235 Steel | ||
Top Diameter | 400 mm | ||
Bottom Diameter | 900 mm | ||
Wall Thickness | 10 mm | ||
| Construction | 2-section flange connection | ||
Coating | Hot-dip galvanized + plastic sprayed | ||
| Base Flange Assembly | Anchor Bolt Quantity | 18 | |
Anchor Bolt Specification | M36 | ||
| Foundation | Foundation Depth | 2.8 m | Buried depth |
Foundation Top Height | 0.1 m above backfill | ||
Concrete Base Thickness | 150 mm | C10 concrete cushion layer | |
| Main Concrete Strength | ≥ C20 | ||
Rebar Cover Thickness | ≥ 40 mm | ||
Vertical Rebar | 36 × Ø14 mm | ||
Stirrup Rebar | Ø10 mm | Circular arrangement | |
Base Plate Material | Q235 Steel | "D-235" interpreted as Q235 | |
| Electrical | Cable Conduit | DN89 (Ø89 mm) | |
| Conduit Burial Depth | 0.5 m | ||
Grounding Conductor | Galvanized pipe | ||
Grounding Resistance | <10 ohm | ||
| Key Design Notes | Foundation Type | Reinforced concrete | Complies with GBJ7-89 standard |
Soil Bearing Capacity Requirement | ≥10 t/m² | For regions ≤11 t/m² load | |
| Installation Requirement | Concrete sealing after install | For anchor bolts |
Important Interpretations:
Foundation Specifications:
Requires soil bearing capacity ≥10 t/m² for areas with ≤11 t/m² loads
Anchor bolts sealed with concrete post-installation
Structural Details:
Square foundation dimensions not explicitly stated (only shown in diagrams)
"0.114*3.0" notation not fully deciphered (possibly related to bolt pattern)
"B" length specifier for M36 bolts remains undefined
Material Notes:
Q235 steel equivalent to ASTM A36 (yield strength 235 MPa)
Concrete grades: C10 (7.5 MPa) for cushion, C20 (20 MPa) for main foundation
Electrical Grounding:
Galvanized pipe used for grounding (diameter unspecified)
Resistance must be <10 ohms per electrical safety standards
Construction Requirements:
Foundation depth adjustable per local regulations (minimum 2.8m shown)
100mm foundation exposure above final grade
All steel components hot-dip galvanized for corrosion protection
