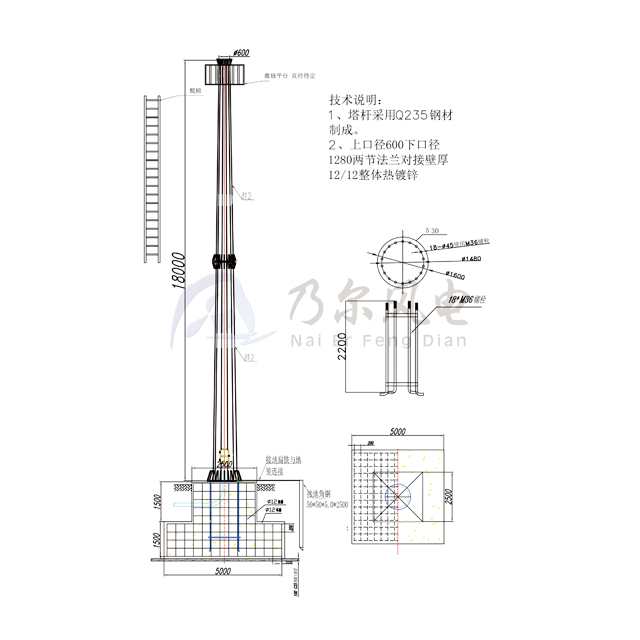

Wind Turbine Tower Specifications 50kw (18m)
Parameter Category | Parameter | Value | Notes/Units |
| Tower General | Height | 18.0 meters | From filename "18m" |
| Material | Q235 Steel | Implied by context (not explicit) |
| Top Diameter | 600 mm |
|
| Bottom Diameter | 1280 mm |
|
| Wall Thickness | 12 mm | "12/12" indicates uniform thickness |
| Construction | 2-section flange connection |
|
| Coating | Hot-dip galvanized |
|
| Structural Features | Maintenance Platform | Diameter TBD |
|
| Access Ladder | Included |
|
| Grounding System | Grounding Conductor | 50×50×5 mm Angle Steel |
|
| Conductor Length | 2500 mm |
|
| Connection Method | To rebar cage via flat iron |
|
Foundation | Base Type | Concrete cushion layer | Thickness not specified
|
| Key Observations | Wall Thickness Note | Uniform 12mm | "12/12" suggests same thickness for both sections |
| Electrical Grounding | Integrated with foundation | Via angle steel and flat iron |
Important Interpretations:
Cross-section: Specifications indicate a tapered cylindrical tower (600mm top → 1280mm base)
Construction:
Two-section design with flanged connections
Full hot-dip galvanizing for corrosion protection
Grounding System:
50×50×5mm angle steel (L2500mm) as primary electrode
Connected to rebar cage using flat iron
Access Features:
Maintenance platform (diameter not specified)
Vertical ladder for tower access
Material: Q235 steel assumed based on consistent material specification in similar towers
